Sheet 1: Sheet1

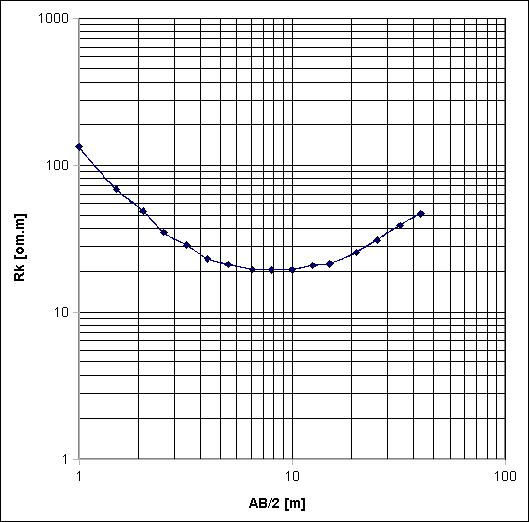

	GRAPHIC OF VES No.1
Site: "Wetland restoration of Bruchlen/Kalimok Marshes"































Measured values		Calculated values for the specific el. resistance of the
AB/2 [м]	R k /ом.м/	layers r , their power М and depth Н to the bottom
1	134	of the layer
1.5	69
2	49	Layer #1		Layer #4
2.5	35	r /ом.м/	235	r /ом.м/	1100
3.2	28.7	М /м/	0.5
4	23.2	Н /м/	0.5
5	21.2	Layer #2
6.5	19.6	r /ом.м/	32.5
8	19.5	М /м/	1.2
10	19.5	Н /м/	1.7		RMS 2,6%
12.5	20.8	Layer #3
15	21.4	r /ом.м/	16.9	Date of measuring: 10.07.2003
20	25.6	М /м/	13
25	31.1	Н /м/	14.7	Measured by:
32	39.1			Eng. L. Lyubomirov
40	47

Sheet 2: Sheet2

	GRAPHIC OF VES No.2
Site: "Wetland restoration of Bruchlen/Kalimok Marshes"































Measured values		Calculated values for the specific el. resistance of the
AB/2 [м]	R k /ом.м/	layers r , their power М and depth Н to the bottom
1	22.7	of the layer
1.5	21.6
2	22.6	Layer #1		Layer #3
2.5	23.6	r /ом.м/	20.2	r /ом.м/	91.5
3.2	25.3	М /м/	2.1
4	27.1	Н /м/	2.1
5	28.9	Layer #2
6.5	31	r /ом.м/	38.8
8	33.4	М /м/	16.2
10	35.6	Н /м/	18.3		RMS 1,54%
12.5	37.5
15	39			Date of measuring: 10.07.2003
20	41.2
25	44			Measured by:
32	48			Eng. L. Lyubomirov
40	50.1

Sheet 3: Sheet3

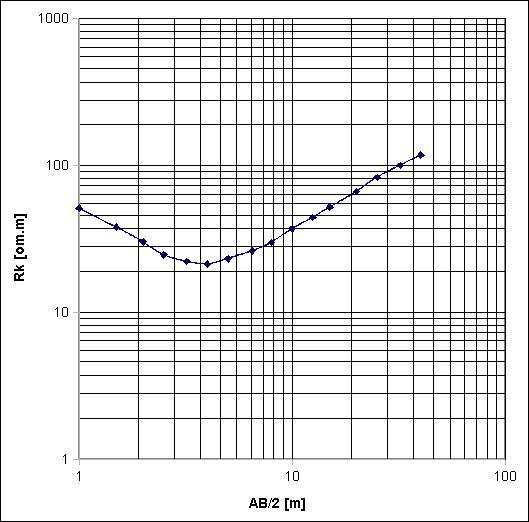

	GRAPHIC OF VES No.3
Site: "Wetland restoration of Bruchlen/Kalimok Marshes"































Measured values		Calculated values for the specific el. resistance of the
AB/2 [м]	R k /ом.м/	layers r , their power М and depth Н to the bottom
1	51.2	of the layer
1.5	38.1
2	30.2	Layer #1		Layer #3
2.5	24.6	r /ом.м/	55.8	r /ом.м/	1200
3.2	22.2	М /м/	0.7
4	21.3	Н /м/	0.7
5	23.2	Layer #2
6.5	26.2	r /ом.м/	14.8
8	30	М /м/	4.6
10	37.1	Н /м/	5.3		RMS 1,98%
12.5	44.3
15	52.1			Date of measuring: 10.07.2003
20	66.5
25	83			Measured by:
32	100			Eng. L. Lyubomirov
40	118

Sheet 4: Sheet5

		Dynamic penetration No.1
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

	Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	def. /Ео/
		мРа	мРа	мРа
2	-0.1	0.22	0.00	0.00
3	-0.2	0.83	0.51	0.00
3	-0.3	0.83	0.51	0.00
4	-0.4	1.44	1.49	1.86
6	-0.5	2.65	3.43	6.79
4	-0.6	1.44	1.49	1.86
4	-0.7	1.44	1.49	1.86
4	-0.8	1.44	1.49	1.86
3	-0.9	0.83	0.51	0.00
3	-1	0.83	0.51	0.00
4	-1.1	1.44	1.49	1.86
5	-1.2	2.05	2.46	4.33
4	-1.3	1.44	1.49	1.86
3	-1.4	0.83	0.51	0.00
2	-1.5	0.22	0.00	0.00
3	-1.6	0.84	0.64	0.00
2	-1.7	0.50	0.06	0.00
2	-1.8	0.50	0.06	0.00
2	-1.9	0.50	0.06	0.00
2	-2	0.50	0.06	0.00
2	-2.1	0.50	0.06	0.00
2	-2.2	0.50	0.06	0.00
2	-2.3	0.50	0.06	0.00
2	-2.4	0.50	0.06	0.00
2	-2.5	0.50	0.06	0.00
2	-2.6	0.50	0.06	0.00
3	-2.7	0.84	0.64	0.00
4	-2.8	1.19	1.22	0.51
4	-2.9	1.19	1.22	0.51
5	-3	1.54	1.80	1.89
4	-3.1	1.19	1.22	0.51
5	-3.2	1.54	1.80	1.89
5	-3.3	1.54	1.80	1.89
6	-3.4	1.89	2.38	3.27
6	-3.5	1.89	2.38	3.27
5	-3.6	1.54	1.80	1.89
6	-3.7	1.89	2.38	3.27	Sofia 11.06.2003
7	-3.8	2.24	2.96	4.64
6	-3.9	1.89	2.38	3.27	Measured by:
7	-4	2.24	2.96	4.64	eng.L.Lyubomirov

Sheet 5: Sheet6

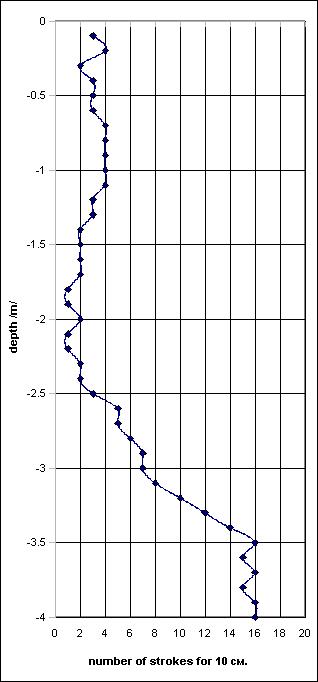

		Dynamic penetration No.2
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

	Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
3	-0.1	0.83	0.51	0.00
4	-0.2	1.44	1.49	1.86
2	-0.3	0.22	0.00	0.00
3	-0.4	0.83	0.51	0.00
3	-0.5	0.83	0.51	0.00
3	-0.6	0.83	0.51	0.00
4	-0.7	1.44	1.49	1.86
4	-0.8	1.44	1.49	1.86
4	-0.9	1.44	1.49	1.86
4	-1	1.44	1.49	1.86
4	-1.1	1.44	1.49	1.86
3	-1.2	0.83	0.51	0.00
3	-1.3	0.83	0.51	0.00
2	-1.4	0.00	0.00	0.00
2	-1.5	0.00	0.00	0.00
2	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
1	-1.8	0.00	0.00	0.00
1	-1.9	0.00	0.00	0.00
2	-2	0.00	0.00	0.00
1	-2.1	0.00	0.00	0.00
1	-2.2	0.00	0.00	0.00
2	-2.3	0.00	0.00	0.00
2	-2.4	0.00	0.00	0.00
3	-2.5	0.00	0.00	0.00
5	-2.6	1.54	1.80	1.89
5	-2.7	1.54	1.80	1.89
6	-2.8	1.89	2.38	3.27
7	-2.9	2.24	2.96	4.64
7	-3	2.24	2.96	4.64
8	-3.1	2.58	3.54	6.02
10	-3.2	3.28	4.70	8.78
12	-3.3	3.98	5.86	11.53
14	-3.4	4.67	7.02	14.29
16	-3.5	5.37	8.18	17.04
15	-3.6	5.02	7.60	15.66
16	-3.7	5.37	8.18	17.04	Sofia:10,06,2003 г.
15	-3.8	5.02	7.60	15.66
16	-3.9	5.37	8.18	17.04	Measured by:
16	-4	5.37	8.18	17.04	eng.L.Lyubomirov

Sheet 6: Sheet7

		Dynamic penetration No.3
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
3	-0.1	0.83	0.51	0.00
3	-0.2	0.83	0.51	0.00
4	-0.3	1.44	1.49	1.86
4	-0.4	1.44	1.49	1.86
6	-0.5	2.65	3.43	6.79
8	-0.6	3.87	5.37	11.72
6	-0.7	2.65	3.43	6.79
5	-0.8	2.05	2.46	4.33
4	-0.9	0.37	0.00	0.00
4	-1	0.37	0.00	0.00
4	-1.1	0.37	0.00	0.00
4	-1.2	0.37	0.00	0.00
4	-1.3	0.37	0.00	0.00
5	-1.4	0.76	0.42	0.00
4	-1.5	0.37	0.00	0.00
4	-1.6	0.37	0.00	0.00
4	-1.7	0.37	0.00	0.00
3	-1.8	0.00	0.00	0.00
3	-1.9	0.00	0.00	0.00
3	-2	0.00	0.00	0.00
2	-2.1	0.00	0.00	0.00
1	-2.2	0.00	0.00	0.00
2	-2.3	0.00	0.00	0.00
2	-2.4	0.00	0.00	0.00
2	-2.5	0.00	0.00	0.00
3	-2.6	0.00	0.00	0.00
2	-2.7	0.00	0.00	0.00
2	-2.8	0.00	0.00	0.00
3	-2.9	0.84	0.64	0.00
3	-3	0.84	0.64	0.00
3	-3.1	0.84	0.64	0.00
3	-3.2	0.84	0.64	0.00
4	-3.3	1.19	1.22	0.51
4	-3.4	1.19	1.22	0.51
4	-3.5	1.19	1.22	0.51
5	-3.6	1.54	1.80	1.89
6	-3.7	1.89	2.38	3.27	Sofia 11.06.2003
6	-3.8	1.89	2.38	3.27
7	-3.9	2.24	2.96	4.64	Measured by:
7	-4	2.24	2.96	4.64	eng. L. Lyubomirov

Sheet 7: Sheet8

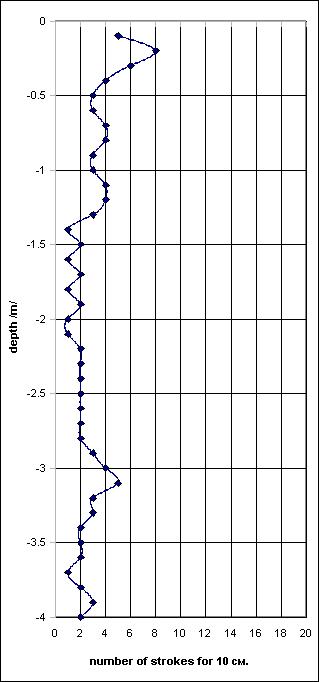

		Dynamic penetration No.4
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
5	-0.1	2.05	2.46	4.33
8	-0.2	3.87	5.37	11.72
6	-0.3	2.65	3.43	6.79
4	-0.4	1.44	1.49	1.86
3	-0.5	0.83	0.51	0.00
3	-0.6	0.83	0.51	0.00
4	-0.7	1.44	1.49	1.86
4	-0.8	1.44	1.49	1.86
3	-0.9	0.83	0.51	0.00
3	-1	0.83	0.51	0.00
4	-1.1	1.44	1.49	1.86
4	-1.2	1.44	1.49	1.86
3	-1.3	0.83	0.51	0.00
1	-1.4	0.00	0.00	0.00
2	-1.5	0.00	0.00	0.00
1	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
1	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
1	-2	0.00	0.00	0.00
1	-2.1	0.00	0.00	0.00
2	-2.2	0.00	0.00	0.00
2	-2.3	0.00	0.00	0.00
2	-2.4	0.00	0.00	0.00
2	-2.5	0.00	0.00	0.00
2	-2.6	0.00	0.00	0.00
2	-2.7	0.00	0.00	0.00
2	-2.8	0.00	0.00	0.00
3	-2.9	0.84	0.64	0.00
4	-3	1.19	1.22	0.51
5	-3.1	1.54	1.80	1.89
3	-3.2	0.84	0.64	0.00
3	-3.3	0.84	0.64	0.00
2	-3.4	0.50	0.06	0.00
2	-3.5	0.50	0.06	0.00
2	-3.6	0.50	0.06	0.00
1	-3.7	0.15	0.00	0.00	Sofia:10,06,2003 г.
2	-3.8	0.50	0.06	0.00
3	-3.9	0.84	0.64	0.00	Measured by:
2	-4	0.50	0.06	0.00	eng.L.Lyubomirov

Sheet 8: Sheet9

		Dynamic penetration No.5
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
4	-0.1	1.44	1.49	1.86
4	-0.2	1.44	1.49	1.86
2	-0.3	0.22	0.00	0.00
2	-0.4	0.22	0.00	0.00
1	-0.5	0.00	0.00	0.00
2	-0.6	0.22	0.00	0.00
2	-0.7	0.22	0.00	0.00
2	-0.8	0.22	0.00	0.00
2	-0.9	0.22	0.00	0.00
3	-1	0.83	0.51	0.00
3	-1.1	0.83	0.51	0.00
3	-1.2	0.83	0.51	0.00
4	-1.3	1.44	1.49	1.86
2	-1.4	0.22	0.00	0.00
3	-1.5	0.83	0.51	0.00
2	-1.6	0.22	0.00	0.00
1	-1.7	0.00	0.00	0.00
2	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
2	-2	0.00	0.00	0.00
2	-2.1	0.00	0.00	0.00
3	-2.2	0.00	0.00	0.00
3	-2.3	0.00	0.00	0.00
4	-2.4	0.37	0.00	0.00
4	-2.5	0.37	0.00	0.00
5	-2.6	0.76	0.42	0.00
5	-2.7	0.76	0.42	0.00
5	-2.8	0.76	0.42	0.00
5	-2.9	0.76	0.42	0.00
4	-3	0.37	0.00	0.00
5	-3.1	0.76	0.42	0.00
5	-3.2	0.76	0.42	0.00
6	-3.3	1.15	1.04	0.77
6	-3.4	1.15	1.04	0.77
6	-3.5	1.15	1.04	0.77
6	-3.6	1.15	1.04	0.77
6	-3.7	1.15	1.04	0.77	Sofia:10,06,2003 г.
7	-3.8	1.54	1.66	2.37
7	-3.9	1.54	1.66	2.37	Measured by:
7	-4	1.54	1.66	2.37	eng.L.Lyubomirov

Sheet 9: Sheet11

		Dynamic penetration No.6
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
13	-0.1	6.92	10.23	24.05
19	-0.2	10.57	16.06	38.84
19	-0.3	10.57	16.06	38.84
16	-0.4	8.74	13.14	31.44
14	-0.5	7.53	11.20	26.51
12	-0.6	6.31	9.26	21.58
10	-0.7	5.09	7.32	16.65
8	-0.8	3.87	5.37	11.72
7	-0.9	3.26	4.40	9.26
6	-1	2.65	3.43	6.79
5	-1.1	2.05	2.46	4.33
4	-1.2	1.44	1.49	1.86
2	-1.3	0.00	0.00	0.00
3	-1.4	0.00	0.00	0.00
2	-1.5	0.00	0.00	0.00
2	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
2	-1.8	0.00	0.00	0.00
1	-1.9	0.00	0.00	0.00
2	-2	0.00	0.00	0.00
1	-2.1	0.00	0.00	0.00
1	-2.2	0.00	0.00	0.00
1	-2.3	0.00	0.00	0.00
2	-2.4	0.00	0.00	0.00
2	-2.5	0.00	0.00	0.00
2	-2.6	0.00	0.00	0.00
3	-2.7	0.00	0.00	0.00
4	-2.8	0.37	0.00	0.00
4	-2.9	0.37	0.00	0.00
5	-3	0.76	0.42	0.00
5	-3.1	0.76	0.42	0.00
5	-3.2	0.76	0.42	0.00
6	-3.3	1.15	1.04	0.77
7	-3.4	1.54	1.66	2.37
7	-3.5	1.54	1.66	2.37
8	-3.6	1.93	2.29	3.96
9	-3.7	2.32	2.91	5.56	Sofia:10,06,2003 г.
9	-3.8	2.32	2.91	5.56
9	-3.9	2.32	2.91	5.56	Measured by:
9	-4	2.32	2.91	5.56	eng.L.Lyubomirov

Sheet 10: Sheet12

		Dynamic penetration No.7
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
6	-0.1	1.15	1.04	0.77
9	-0.2	2.32	2.91	5.56
7	-0.3	1.54	1.66	2.37
6	-0.4	1.15	1.04	0.77
6	-0.5	1.15	1.04	0.77
8	-0.6	1.93	2.29	3.96
8	-0.7	1.93	2.29	3.96
6	-0.8	1.15	1.04	0.77
3	-0.9	0.00	0.00	0.00
4	-1	0.37	0.00	0.00
6	-1.1	1.15	1.04	0.77
6	-1.2	1.15	1.04	0.77
4	-1.3	1.44	1.49	1.86
4	-1.4	1.44	1.49	1.86
4	-1.5	1.44	1.49	1.86
3	-1.6	0.83	0.51	0.00
4	-1.7	1.44	1.49	1.86
4	-1.8	1.44	1.49	1.86
4	-1.9	1.44	1.49	1.86
4	-2	1.44	1.49	1.86
4	-2.1	1.44	1.49	1.86
3	-2.2	0.83	0.51	0.00
3	-2.3	0.83	0.51	0.00
2	-2.4	0.22	0.00	0.00
3	-2.5	0.83	0.51	0.00
3	-2.6	0.83	0.51	0.00
3	-2.7	0.83	0.51	0.00
3	-2.8	0.83	0.51	0.00
3	-2.9	0.83	0.51	0.00
2	-3	1.86	2.19	3.44
3	-3.1	2.44	3.13	5.76
2	-3.2	1.86	2.19	3.44
3	-3.3	2.44	3.13	5.76
5	-3.4	3.60	5.01	10.40
5	-3.5	3.60	5.01	10.40
4	-3.6	3.02	4.07	8.08
3	-3.7	2.44	3.13	5.76
4	-3.8	3.02	4.07	8.08
4	-3.9	3.02	4.07	8.08
4	-4	3.02	4.07	8.08
4	-4.1	3.02	4.07	8.08
5	-4.2	3.60	5.01	10.40
5	-4.3	3.60	5.01	10.40
5	-4.4	3.60	5.01	10.40
6	-4.5	4.18	5.96	12.72
7	-4.6	4.76	6.90	15.04	Sofia:10,06,2003 г.
7	-4.7	4.76	6.90	15.04
8	-4.8	5.34	7.84	17.36	Measured by:
8	-4.9	5.34	7.84	17.36	eng.L.Lyubomirov
8	-5	5.34	7.84	17.36

Sheet 11: Sheet13

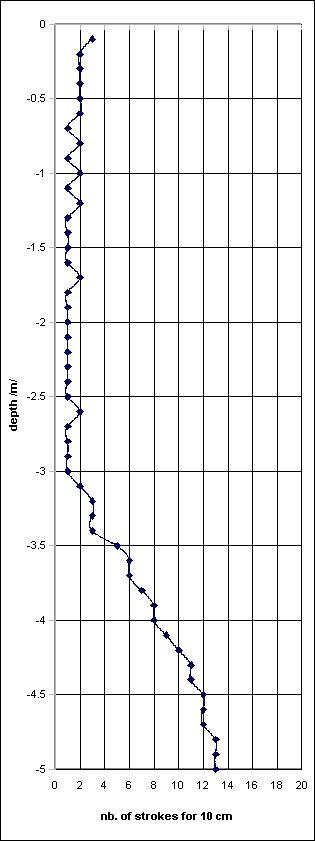

		Dynamic penetration No.8
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
2	-0.1	0.22	0.00	0.00
3	-0.2	0.83	0.51	0.00
2	-0.3	0.22	0.00	0.00
2	-0.4	0.22	0.00	0.00
1	-0.5	0.00	0.00	0.00
1	-0.6	0.00	0.00	0.00
1	-0.7	0.00	0.00	0.00
2	-0.8	0.22	0.00	0.00
1	-0.9	0.00	0.00	0.00
1	-1	0.00	0.00	0.00
2	-1.1	0.22	0.00	0.00
1	-1.2	0.00	0.00	0.00
1	-1.3	0.00	0.00	0.00
1	-1.4	0.00	0.00	0.00
1	-1.5	0.00	0.00	0.00
1	-1.6	0.00	0.00	0.00
1	-1.7	0.00	0.00	0.00
1	-1.8	0.00	0.00	0.00
2	-1.9	0.22	0.00	0.00
3	-2	0.83	0.51	0.00
3	-2.1	0.83	0.51	0.00
3	-2.2	0.83	0.51	0.00
3	-2.3	0.83	0.51	0.00
3	-2.4	0.83	0.51	0.00
4	-2.5	1.44	1.49	1.86
4	-2.6	1.44	1.49	1.86
4	-2.7	1.44	1.49	1.86
5	-2.8	2.05	2.46	4.33
6	-2.9	2.65	3.43	6.79
7	-3	3.26	4.40	9.26
7	-3.1	3.26	4.40	9.26
8	-3.2	3.87	5.37	11.72
8	-3.3	3.87	5.37	11.72
10	-3.4	5.09	7.32	16.65
10	-3.5	5.09	7.32	16.65
9	-3.6	4.48	6.34	14.19
9	-3.7	4.48	6.34	14.19
10	-3.8	5.09	7.32	16.65
10	-3.9	5.09	7.32	16.65
10	-4	5.09	7.32	16.65
10	-4.1	5.09	7.32	16.65
10	-4.2	5.09	7.32	16.65
11	-4.3	3.63	5.28	10.15
11	-4.4	3.63	5.28	10.15
10	-4.5	3.28	4.70	8.78
11	-4.6	3.63	5.28	10.15	Sofia:10,06,2003 г.
11	-4.7	3.63	5.28	10.15
11	-4.8	3.63	5.28	10.15	Measured by:
11	-4.9	3.63	5.28	10.15	eng.L.Lyubomirov
11	-5	3.63	5.28	10.15

Sheet 12: Sheet14

		Dynamic penetration No.9
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
2	-0.1	0.22	0.00	0.00
2	-0.2	0.22	0.00	0.00
1	-0.3	0.00	0.00	0.00
1	-0.4	0.00	0.00	0.00
1	-0.5	0.00	0.00	0.00
1	-0.6	0.00	0.00	0.00
1	-0.7	0.00	0.00	0.00
1	-0.8	0.00	0.00	0.00
1	-0.9	0.00	0.00	0.00
2	-1	0.22	0.00	0.00
1	-1.1	0.00	0.00	0.00
1	-1.2	0.00	0.00	0.00
1	-1.3	0.00	0.00	0.00
1	-1.4	0.00	0.00	0.00
2	-1.5	0.22	0.00	0.00
1	-1.6	0.00	0.00	0.00
1	-1.7	0.00	0.00	0.00
2	-1.8	0.22	0.00	0.00
1	-1.9	0.00	0.00	0.00
1	-2	0.00	0.00	0.00
1	-2.1	0.00	0.00	0.00
1	-2.2	0.00	0.00	0.00
2	-2.3	0.22	0.00	0.00
2	-2.4	0.22	0.00	0.00
2	-2.5	0.22	0.00	0.00
2	-2.6	0.22	0.00	0.00
2	-2.7	0.22	0.00	0.00
3	-2.8	0.83	0.51	0.00
2	-2.9	0.22	0.00	0.00
3	-3	0.83	0.51	0.00
3	-3.1	0.83	0.51	0.00
3	-3.2	0.83	0.51	0.00
4	-3.3	1.19	1.22	0.51
4	-3.4	1.19	1.22	0.51
4	-3.5	1.19	1.22	0.51
4	-3.6	1.19	1.22	0.51
4	-3.7	1.19	1.22	0.51
5	-3.8	1.54	1.80	1.89
5	-3.9	1.54	1.80	1.89
5	-4	1.54	1.80	1.89
6	-4.1	1.89	2.38	3.27
5	-4.2	1.54	1.80	1.89
6	-4.3	1.89	2.38	3.27
6	-4.4	1.89	2.38	3.27
6	-4.5	1.89	2.38	3.27
7	-4.6	2.24	2.96	4.64	Sofia:10,06,2003 г.
7	-4.7	2.24	2.96	4.64
7	-4.8	2.24	2.96	4.64	Measured by:
7	-4.9	2.24	2.96	4.64	eng.L.Lyubomirov
8	-5	2.58	3.54	6.02

Sheet 13: Sheet15

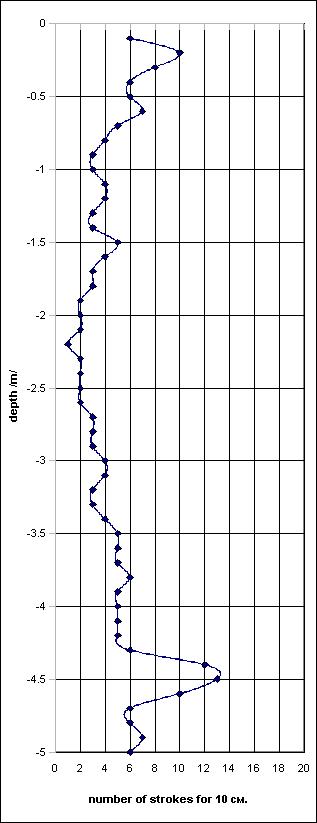

		Dynamic penetration No.10
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
6	-0.1	1.15	1.04	0.77
10	-0.2	2.72	3.54	7.15
8	-0.3	1.93	2.29	3.96
6	-0.4	1.15	1.04	0.77
6	-0.5	1.15	1.04	0.77
7	-0.6	1.54	1.66	2.37
5	-0.7	0.76	0.42	0.00
4	-0.8	0.37	0.00	0.00
3	-0.9	0.00	0.00	0.00
3	-1	0.00	0.00	0.00
4	-1.1	0.37	0.00	0.00
4	-1.2	0.37	0.00	0.00
3	-1.3	0.00	0.00	0.00
3	-1.4	0.00	0.00	0.00
5	-1.5	0.76	0.42	0.00
4	-1.6	0.37	0.00	0.00
3	-1.7	0.00	0.00	0.00
3	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
2	-2	0.00	0.00	0.00
2	-2.1	0.00	0.00	0.00
1	-2.2	0.00	0.00	0.00
2	-2.3	0.00	0.00	0.00
2	-2.4	0.00	0.00	0.00
2	-2.5	0.00	0.00	0.00
2	-2.6	0.00	0.00	0.00
3	-2.7	0.00	0.00	0.00
3	-2.8	0.00	0.00	0.00
3	-2.9	0.00	0.00	0.00
4	-3	0.37	0.00	0.00
4	-3.1	0.37	0.00	0.00
3	-3.2	0.00	0.00	0.00
3	-3.3	0.00	0.00	0.00
4	-3.4	0.37	0.00	0.00
5	-3.5	0.76	0.42	0.00
5	-3.6	0.76	0.42	0.00
5	-3.7	0.76	0.42	0.00
6	-3.8	1.15	1.04	0.00
5	-3.9	0.76	0.42	0.00
5	-4	0.76	0.42	0.00
5	-4.1	0.76	0.42	0.00
5	-4.2	0.76	0.42	0.00
6	-4.3	1.15	1.04	0.77
12	-4.4	3.50	4.78	10.34
13	-4.5	3.89	5.41	11.94
10	-4.6	2.72	3.54	7.15	Sofia:10,06,2003 г.
6	-4.7	1.15	1.04	0.77
6	-4.8	1.15	1.04	0.77	Measured by:
7	-4.9	1.54	1.66	2.37	eng.L.Lyubomirov
6	-5	1.15	1.04	0.77

Sheet 14: Sheet16

		Dynamic penetration No.11
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
3	-0.1	0.83	0.51	0.00
4	-0.2	1.44	1.49	1.86
6	-0.3	2.65	3.43	6.79
6	-0.4	2.65	3.43	6.79
5	-0.5	2.05	2.46	4.33
5	-0.6	2.05	2.46	4.33
5	-0.7	2.05	2.46	4.33
2	-0.8	0.22	0.00	0.00
2	-0.9	0.22	0.00	0.00
2	-1	0.22	0.00	0.00
2	-1.1	0.22	0.00	0.00
2	-1.2	0.22	0.00	0.00
2	-1.3	0.22	0.00	0.00
2	-1.4	0.22	0.00	0.00
2	-1.5	0.22	0.00	0.00
2	-1.6	0.22	0.00	0.00
5	-1.7	0.76	0.42	0.00
5	-1.8	0.76	0.42	0.00
6	-1.9	1.15	1.04	0.77
7	-2	1.54	1.66	2.37
8	-2.1	1.93	2.29	3.96
10	-2.2	2.72	3.54	7.15
10	-2.3	2.72	3.54	7.15
10	-2.4	2.72	3.54	7.15
11	-2.5	3.11	4.16	8.75
14	-2.6	4.28	6.03	13.53
13	-2.7	3.89	5.41	11.94
14	-2.8	4.28	6.03	13.53
15	-2.9	4.67	6.65	15.13
23	-3	7.80	11.64	27.89
18	-3.1	5.85	8.52	19.91
19	-3.2	6.24	9.15	21.51
18	-3.3	5.85	8.52	19.91
20	-3.4	6.63	9.77	23.10
22	-3.5	7.41	11.02	26.29
24	-3.6	8.20	12.26	29.48
23	-3.7	7.80	11.64	27.89	Sofia:10,06,2003 г.
22	-3.8	7.41	11.02	26.29
23	-3.9	7.80	11.64	27.89	Measured by:
22	-4	7.41	11.02	26.29	eng.L.Lyubomirov

Sheet 15: Sheet17

		Dynamic penetration No.12
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
1	-0.1	0.00	0.00	0.00
3	-0.2	0.00	0.00	0.00
3	-0.3	0.00	0.00	0.00
2	-0.4	0.00	0.00	0.00
2	-0.5	0.00	0.00	0.00
2	-0.6	0.00	0.00	0.00
2	-0.7	0.00	0.00	0.00
1	-0.8	0.00	0.00	0.00
2	-0.9	0.00	0.00	0.00
1	-1	0.00	0.00	0.00
2	-1.1	0.00	0.00	0.00
2	-1.2	0.00	0.00	0.00
1	-1.3	0.00	0.00	0.00
2	-1.4	0.00	0.00	0.00
2	-1.5	0.00	0.00	0.00
1	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
2	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
2	-2	0.00	0.00	0.00
3	-2.1	0.00	0.00	0.00
3	-2.2	0.00	0.00	0.00
2	-2.3	0.00	0.00	0.00
2	-2.4	0.00	0.00	0.00
3	-2.5	0.00	0.00	0.00
4	-2.6	0.37	0.00	0.00
5	-2.7	0.76	0.42	0.00
5	-2.8	0.76	0.42	0.00
5	-2.9	0.76	0.42	0.00
5	-3	0.76	0.42	0.00
6	-3.1	1.15	1.04	0.77
5	-3.2	0.76	0.42	0.00
5	-3.3	0.76	0.42	0.00
6	-3.4	1.15	1.04	0.77
7	-3.5	1.54	1.66	2.37
7	-3.6	1.54	1.66	2.37
8	-3.7	1.93	2.29	3.96
7	-3.8	1.54	1.66	2.37
7	-3.9	1.54	1.66	2.37
6	-4	1.15	1.04	0.77
8	-4.1	1.93	2.29	3.96
8	-4.2	1.93	2.29	3.96
9	-4.3	2.32	2.91	5.56
9	-4.4	2.32	2.91	5.56
9	-4.5	2.32	2.91	5.56
9	-4.6	2.32	2.91	5.56	Sofia:10,06,2003 г.
12	-4.7	3.50	4.78	10.34
12	-4.8	3.50	4.78	10.34	Measured by:
14	-4.9	4.28	6.03	13.53	eng.L.Lyubomirov
16	-5	5.06	7.28	16.72

Sheet 16: Sheet18

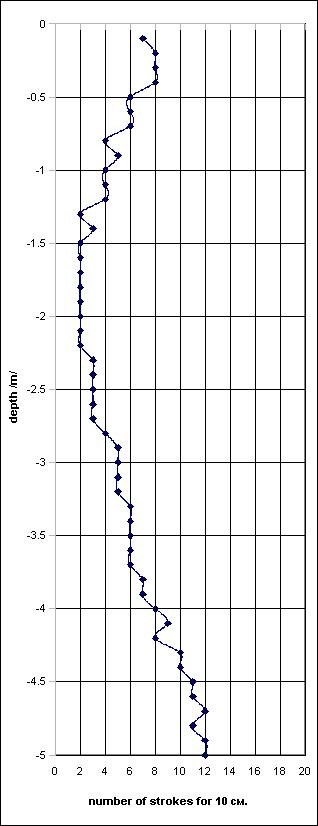

		Dynamic penetration No.13
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
7	-0.1	1.54	1.66	2.37
8	-0.2	1.93	2.29	3.96
8	-0.3	1.93	2.29	3.96
8	-0.4	1.93	2.29	3.96
6	-0.5	1.15	1.04	0.77
6	-0.6	1.15	1.04	0.77
6	-0.7	1.15	1.04	0.77
4	-0.8	0.37	0.00	0.00
5	-0.9	0.76	0.42	0.00
4	-1	0.37	0.00	0.00
4	-1.1	0.37	0.00	0.00
4	-1.2	0.37	0.00	0.00
2	-1.3	0.00	0.00	0.00
3	-1.4	0.00	0.00	0.00
2	-1.5	0.00	0.00	0.00
2	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
2	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
2	-2	0.00	0.00	0.00
2	-2.1	0.00	0.00	0.00
2	-2.2	0.00	0.00	0.00
3	-2.3	0.00	0.00	0.00
3	-2.4	0.00	0.00	0.00
3	-2.5	0.00	0.00	0.00
3	-2.6	0.00	0.00	0.00
3	-2.7	0.00	0.00	0.00
4	-2.8	0.37	0.00	0.00
5	-2.9	0.76	0.42	0.00
5	-3	0.76	0.42	0.00
5	-3.1	0.76	0.42	0.00
5	-3.2	0.76	0.42	0.00
6	-3.3	1.15	1.04	0.77
6	-3.4	1.15	1.04	0.77
6	-3.5	1.15	1.04	0.77
6	-3.6	1.15	1.04	0.77
6	-3.7	1.15	1.04	0.77
7	-3.8	1.54	1.66	2.37
7	-3.9	1.54	1.66	2.37
8	-4	1.93	2.29	3.96
9	-4.1	2.32	2.91	5.56
8	-4.2	1.93	2.29	3.96
10	-4.3	2.72	3.54	7.15
10	-4.4	2.72	3.54	7.15
11	-4.5	3.11	4.16	8.75
11	-4.6	3.11	4.16	8.75	Sofia:10,06,2003 г.
12	-4.7	3.50	4.78	10.34
11	-4.8	3.11	4.16	8.75	Measured by:
12	-4.9	3.50	4.78	10.34	eng.L.Lyubomirov
12	-5	3.50	4.78	10.34

Sheet 17: Sheet19

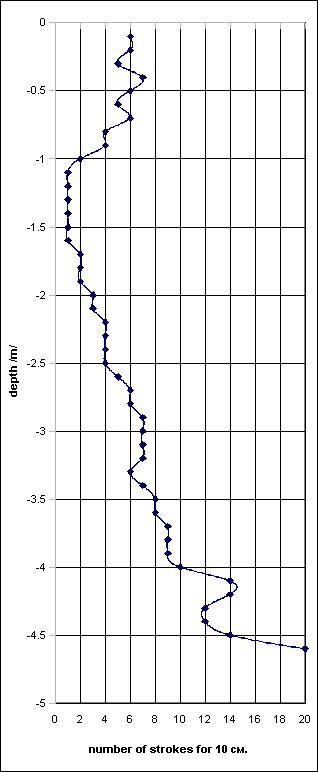

		Dynamic penetration No.14
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
6	-0.1	1.15	1.04	0.77
6	-0.2	1.15	1.04	0.77
5	-0.3	0.76	0.42	0.00
7	-0.4	1.54	1.66	2.37
6	-0.5	1.15	1.04	0.77
5	-0.6	0.76	0.42	0.00
6	-0.7	1.15	1.04	0.77
4	-0.8	0.37	0.00	0.00
4	-0.9	0.37	0.00	0.00
2	-1	0.00	0.00	0.00
1	-1.1	0.00	0.00	0.00
1	-1.2	0.00	0.00	0.00
1	-1.3	0.00	0.00	0.00
1	-1.4	0.00	0.00	0.00
1	-1.5	0.00	0.00	0.00
1	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
2	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
3	-2	0.00	0.00	0.00
3	-2.1	0.00	0.00	0.00
4	-2.2	0.37	0.00	0.00
4	-2.3	0.37	0.00	0.00
4	-2.4	0.37	0.00	0.00
4	-2.5	0.37	0.00	0.00
5	-2.6	0.76	0.42	0.00
6	-2.7	1.15	1.04	0.77
6	-2.8	1.15	1.04	0.77
7	-2.9	1.54	1.66	2.37
7	-3	1.54	1.66	2.37
7	-3.1	1.54	1.66	2.37
7	-3.2	1.54	1.66	2.37
6	-3.3	1.15	1.04	0.77
7	-3.4	1.54	1.66	2.37
8	-3.5	1.93	2.29	3.96
8	-3.6	1.93	2.29	3.96
9	-3.7	2.32	2.91	5.56
9	-3.8	2.32	2.91	5.56
9	-3.9	2.32	2.91	5.56
10	-4	2.72	3.54	7.15
14	-4.1	11.15	15.34	40.80
14	-4.2	11.15	15.34	40.80
12	-4.3	9.70	13.02	35.00	Sofia:10,06,2003 г.
12	-4.4	9.70	13.02	35.00
14	-4.5	11.15	15.34	40.80	Measured by:
20	-4.6	15.50	22.30	58.20	eng.L.Lyubomirov

Sheet 18: Sheet20

		Dynamic penetration No.15
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
3	-0.1	0.00	0.00	0.00
3	-0.2	0.00	0.00	0.00
3	-0.3	0.00	0.00	0.00
2	-0.4	0.00	0.00	0.00
2	-0.5	0.00	0.00	0.00
1	-0.6	0.00	0.00	0.00
2	-0.7	0.00	0.00	0.00
1	-0.8	0.00	0.00	0.00
1	-0.9	0.00	0.00	0.00
1	-1	0.00	0.00	0.00
1	-1.1	0.00	0.00	0.00
1	-1.2	0.00	0.00	0.00
2	-1.3	0.00	0.00	0.00
3	-1.4	0.00	0.00	0.00
3	-1.5	0.00	0.00	0.00
3	-1.6	0.00	0.00	0.00
3	-1.7	0.00	0.00	0.00
4	-1.8	0.37	0.00	0.00
5	-1.9	0.76	0.42	0.00
5	-2	0.76	0.42	0.00
5	-2.1	0.76	0.42	0.00
6	-2.2	1.15	1.04	0.77
6	-2.3	1.15	1.04	0.77
7	-2.4	1.54	1.66	2.37
8	-2.5	1.93	2.29	3.96
9	-2.6	2.32	2.91	5.56
9	-2.7	2.32	2.91	5.56
9	-2.8	2.32	2.91	5.56
10	-2.9	8.25	10.70	29.20
11	-3	8.98	11.86	32.10
11	-3.1	8.98	11.86	32.10
11	-3.2	8.98	11.86	32.10
12	-3.3	9.70	13.02	35.00
12	-3.4	9.70	13.02	35.00
15	-3.5	11.88	16.50	43.70
15	-3.6	11.88	16.50	43.70
15	-3.7	11.88	16.50	43.70	Sofia:10,06,2003 г.
16	-3.8	12.60	17.66	46.60
16	-3.9	12.60	17.66	46.60	Measured by:
17	-4	13.33	18.82	49.50	eng.L.Lyubomirov

Sheet 19: Sheet21

		Dynamic penetration No.16
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
2	-0.1	0.00	0.00	0.00
4	-0.2	0.37	0.00	0.00
6	-0.3	1.15	1.04	0.77
4	-0.4	0.37	0.00	0.00
3	-0.5	0.00	0.00	0.00
2	-0.6	0.00	0.00	0.00
2	-0.7	0.00	0.00	0.00
2	-0.8	0.00	0.00	0.00
2	-0.9	0.00	0.00	0.00
2	-1	0.00	0.00	0.00
1	-1.1	0.00	0.00	0.00
1	-1.2	0.00	0.00	0.00
2	-1.3	0.00	0.00	0.00
2	-1.4	0.00	0.00	0.00
3	-1.5	0.00	0.00	0.00
4	-1.6	0.37	0.00	0.00
4	-1.7	0.37	0.00	0.00
5	-1.8	0.76	0.42	0.00
6	-1.9	1.15	1.04	0.77
6	-2	1.15	1.04	0.77
7	-2.1	1.54	1.66	2.37
8	-2.2	1.93	2.29	3.96
8	-2.3	1.93	2.29	3.96
9	-2.4	2.32	2.91	5.56
9	-2.5	2.32	2.91	5.56
10	-2.6	2.72	3.54	7.15
10	-2.7	2.72	3.54	7.15
11	-2.8	3.11	4.16	8.75
12	-2.9	3.50	4.78	10.34
13	-3	3.89	5.41	11.94
13	-3.1	3.89	5.41	11.94
14	-3.2	4.28	6.03	13.53
14	-3.3	4.28	6.03	13.53
15	-3.4	4.67	6.65	15.13
14	-3.5	4.28	6.03	13.53
15	-3.6	4.67	6.65	15.13
16	-3.7	5.06	7.28	16.72	Sofia:10,06,2003 г.
16	-3.8	5.06	7.28	16.72
18	-3.9	5.85	8.52	19.91	Measured by:
19	-4	6.24	9.15	21.51	eng.L.Lyubomirov

Sheet 20: Sheet22

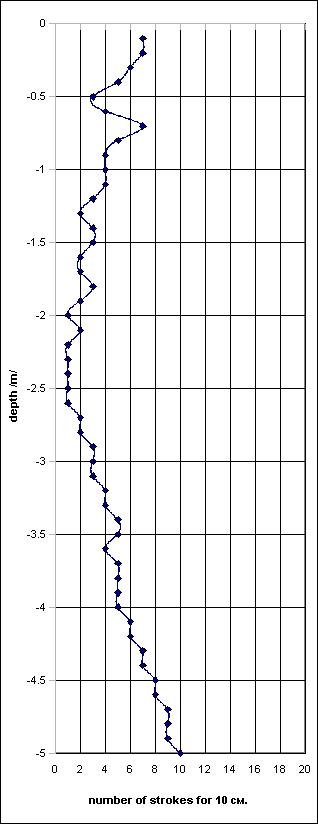

	Dynamic penetration No.17
	Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
7	-0.1	1.54	1.66	2.37
7	-0.2	1.54	1.66	2.37
6	-0.3	1.15	1.04	0.77
5	-0.4	0.76	0.42	0.00
3	-0.5	0.00	0.00	0.00
4	-0.6	0.37	0.00	0.00
7	-0.7	1.54	1.66	2.37
5	-0.8	0.76	0.42	0.00
4	-0.9	0.37	0.00	0.00
4	-1	0.37	0.00	0.00
4	-1.1	0.37	0.00	0.00
3	-1.2	0.00	0.00	0.00
2	-1.3	0.00	0.00	0.00
3	-1.4	0.00	0.00	0.00
3	-1.5	0.00	0.00	0.00
2	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
3	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
1	-2	0.00	0.00	0.00
2	-2.1	0.00	0.00	0.00
1	-2.2	0.00	0.00	0.00
1	-2.3	0.00	0.00	0.00
1	-2.4	0.00	0.00	0.00
1	-2.5	0.00	0.00	0.00
1	-2.6	0.00	0.00	0.00
2	-2.7	0.00	0.00	0.00
2	-2.8	0.00	0.00	0.00
3	-2.9	0.00	0.00	0.00
3	-3	0.00	0.00	0.00
3	-3.1	0.00	0.00	0.00
4	-3.2	0.37	0.00	0.00
4	-3.3	0.37	0.00	0.00
5	-3.4	0.76	0.42	0.00
5	-3.5	0.76	0.42	0.00
4	-3.6	0.37	0.00	0.00
5	-3.7	0.76	0.42	0.00
5	-3.8	0.76	0.42	0.00
5	-3.9	0.76	0.42	0.00
5	-4	0.76	0.42	0.00
6	-4.1	1.15	1.04	0.77
6	-4.2	1.15	1.04	0.77
7	-4.3	1.54	1.66	2.37
7	-4.4	1.54	1.66	2.37
8	-4.5	1.93	2.29	3.96
8	-4.6	1.93	2.29	3.96	Sofia:10,06,2003 г.
9	-4.7	2.32	2.91	5.56
9	-4.8	2.32	2.91	5.56	Measured by:
9	-4.9	2.32	2.91	5.56	eng.L.Lyubomirov
10	-5	2.72	3.54	7.15

Sheet 21: Sheet23

		Dynamic penetration No.18
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
7	-0.1	1.54	1.66	2.37
11	-0.2	3.11	4.16	8.75
12	-0.3	3.50	4.78	10.34
11	-0.4	3.11	4.16	8.75
9	-0.5	2.32	2.91	5.56
7	-0.6	1.54	1.66	2.37
7	-0.7	1.54	1.66	2.37
6	-0.8	1.15	1.04	0.77
5	-0.9	0.76	0.42	0.00
5	-1	0.76	0.42	0.00
4	-1.1	0.37	0.00	0.00
3	-1.2	0.00	0.00	0.00
2	-1.3	0.00	0.00	0.00
2	-1.4	0.00	0.00	0.00
2	-1.5	0.00	0.00	0.00
1	-1.6	0.00	0.00	0.00
1	-1.7	0.00	0.00	0.00
1	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
4	-2	0.37	0.00	0.00
4	-2.1	0.37	0.00	0.00
6	-2.2	1.15	1.04	0.77
6	-2.3	1.15	1.04	0.77
7	-2.4	1.54	1.66	2.37
8	-2.5	1.93	2.29	3.96
10	-2.6	2.72	3.54	7.15
10	-2.7	2.72	3.54	7.15
10	-2.8	2.72	3.54	7.15
10	-2.9	2.72	3.54	7.15
11	-3	3.11	4.16	8.75
11	-3.1	3.11	4.16	8.75
11	-3.2	3.11	4.16	8.75
11	-3.3	3.11	4.16	8.75
12	-3.4	3.50	4.78	10.34
12	-3.5	3.50	4.78	10.34
11	-3.6	3.11	4.16	8.75
11	-3.7	3.11	4.16	8.75
10	-3.8	2.72	3.54	7.15
10	-3.9	2.72	3.54	7.15
11	-4	3.11	4.16	8.75
10	-4.1	2.72	3.54	7.15
11	-4.2	3.11	4.16	8.75	Sofia:10,06,2003 г.
11	-4.3	3.11	4.16	8.75
12	-4.4	3.50	4.78	10.34	Measured by:
11	-4.5	3.11	4.16	8.75	eng.L.Lyubomirov

Sheet 22: Sheet28

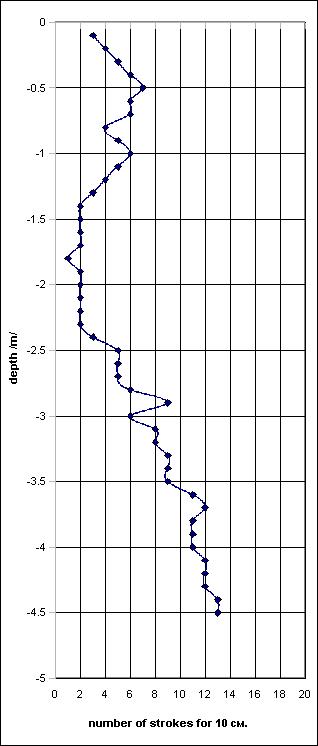

		Dynamic penetration No.19
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
3	-0.1	0.00	0.00	0.00
4	-0.2	0.37	0.00	0.00
5	-0.3	0.76	0.42	0.00
6	-0.4	1.15	1.04	0.77
7	-0.5	1.54	1.66	2.37
6	-0.6	1.15	1.04	0.77
6	-0.7	1.15	1.04	0.77
4	-0.8	0.37	0.00	0.00
5	-0.9	0.76	0.42	0.00
6	-1	1.15	1.04	0.77
5	-1.1	0.76	0.42	0.00
4	-1.2	0.37	0.00	0.00
3	-1.3	0.00	0.00	0.00
2	-1.4	0.00	0.00	0.00
2	-1.5	0.00	0.00	0.00
2	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
1	-1.8	0.00	0.00	0.00
2	-1.9	0.00	0.00	0.00
2	-2	0.00	0.00	0.00
2	-2.1	0.00	0.00	0.00
2	-2.2	0.00	0.00	0.00
2	-2.3	0.00	0.00	0.00
3	-2.4	0.00	0.00	0.00
5	-2.5	1.54	1.80	1.89
5	-2.6	1.54	1.80	1.89
5	-2.7	1.54	1.80	1.89
6	-2.8	1.89	2.38	3.27
9	-2.9	2.93	4.12	7.40
6	-3	1.89	2.38	3.27
8	-3.1	2.58	3.54	6.02
8	-3.2	2.58	3.54	6.02
9	-3.3	2.93	4.12	7.40
9	-3.4	2.93	4.12	7.40
9	-3.5	2.93	4.12	7.40
11	-3.6	3.63	5.28	10.15
12	-3.7	3.98	5.86	11.53
11	-3.8	3.63	5.28	10.15
11	-3.9	3.63	5.28	10.15
11	-4	3.63	5.28	10.15
12	-4.1	3.98	5.86	11.53
12	-4.2	3.98	5.86	11.53	Sofia:10,06,2003 г.
12	-4.3	3.98	5.86	11.53
13	-4.4	4.32	6.44	12.91	Measured by:
13	-4.5	4.32	6.44	12.91	eng.L.Lyubomirov

Sheet 23: Sheet29

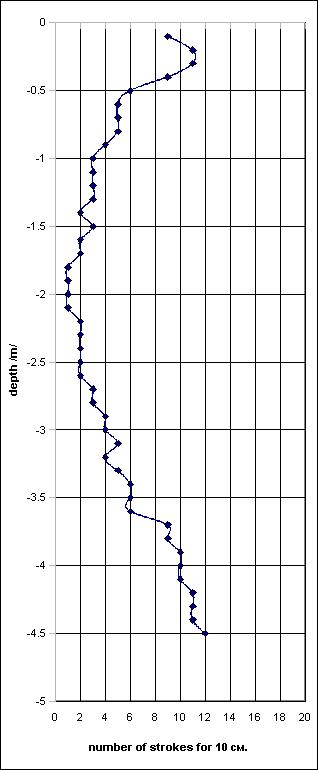

		Dynamic penetration No.20
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
9	-0.1	2.32	2.91	5.56
11	-0.2	3.11	4.16	8.75
11	-0.3	3.11	4.16	8.75
9	-0.4	2.32	2.91	5.56
6	-0.5	1.15	1.04	0.77
5	-0.6	0.76	0.42	0.00
5	-0.7	0.76	0.42	0.00
5	-0.8	0.76	0.42	0.00
4	-0.9	0.37	0.00	0.00
3	-1	0.00	0.00	0.00
3	-1.1	0.00	0.00	0.00
3	-1.2	0.00	0.00	0.00
3	-1.3	0.00	0.00	0.00
2	-1.4	0.00	0.00	0.00
3	-1.5	0.00	0.00	0.00
2	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
1	-1.8	0.00	0.00	0.00
1	-1.9	0.00	0.00	0.00
1	-2	0.00	0.00	0.00
1	-2.1	0.00	0.00	0.00
2	-2.2	0.00	0.00	0.00
2	-2.3	0.00	0.00	0.00
2	-2.4	0.00	0.00	0.00
2	-2.5	0.00	0.00	0.00
2	-2.6	0.00	0.00	0.00
3	-2.7	0.00	0.00	0.00
3	-2.8	0.00	0.00	0.00
4	-2.9	0.37	0.00	0.00
4	-3	0.37	0.00	0.00
5	-3.1	0.76	0.42	0.00
4	-3.2	0.37	0.00	0.00
5	-3.3	0.76	0.42	0.00
6	-3.4	1.15	1.04	0.77
6	-3.5	1.15	1.04	0.77
6	-3.6	1.15	1.04	0.77
9	-3.7	2.32	2.91	5.56
9	-3.8	2.32	2.91	5.56
10	-3.9	2.72	3.54	7.15
10	-4	2.72	3.54	7.15
10	-4.1	2.72	3.54	7.15
11	-4.2	3.63	5.28	10.15	Sofia:10,06,2003 г.
11	-4.3	3.63	5.28	10.15
11	-4.4	3.63	5.28	10.15	Measured by:
12	-4.5	3.98	5.86	11.53	eng.L.Lyubomirov

Sheet 24: Sheet30

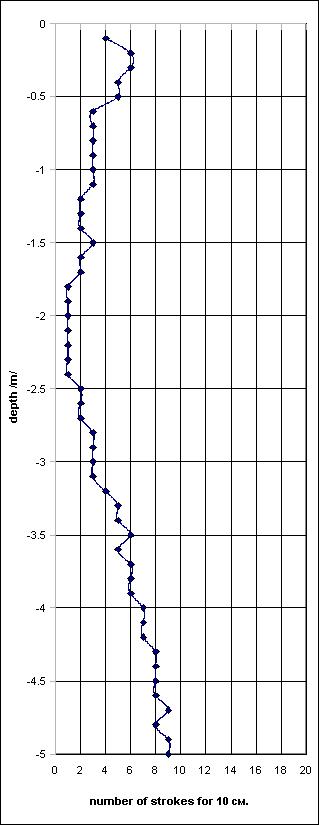

		Dynamic penetration No.21
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
4	-0.1	0.37	0.00	0.00
6	-0.2	1.15	1.04	0.77
6	-0.3	1.15	1.04	0.77
5	-0.4	0.76	0.42	0.00
5	-0.5	0.76	0.42	0.00
3	-0.6	0.00	0.00	0.00
3	-0.7	0.00	0.00	0.00
3	-0.8	0.00	0.00	0.00
3	-0.9	0.00	0.00	0.00
3	-1	0.00	0.00	0.00
3	-1.1	0.00	0.00	0.00
2	-1.2	0.00	0.00	0.00
2	-1.3	0.00	0.00	0.00
2	-1.4	0.00	0.00	0.00
3	-1.5	0.00	0.00	0.00
2	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
1	-1.8	0.00	0.00	0.00
1	-1.9	0.00	0.00	0.00
1	-2	0.00	0.00	0.00
1	-2.1	0.00	0.00	0.00
1	-2.2	0.00	0.00	0.00
1	-2.3	0.00	0.00	0.00
1	-2.4	0.00	0.00	0.00
2	-2.5	0.00	0.00	0.00
2	-2.6	0.00	0.00	0.00
2	-2.7	0.00	0.00	0.00
3	-2.8	0.00	0.00	0.00
3	-2.9	0.00	0.00	0.00
3	-3	0.00	0.00	0.00
3	-3.1	0.00	0.00	0.00
4	-3.2	0.37	0.00	0.00
5	-3.3	0.76	0.42	0.00
5	-3.4	0.76	0.42	0.00
6	-3.5	1.15	1.04	0.77
5	-3.6	0.76	0.42	0.00
6	-3.7	1.15	1.04	0.77
6	-3.8	1.15	1.04	0.77
6	-3.9	1.15	1.04	0.77
7	-4	1.54	1.66	2.37
7	-4.1	1.54	1.66	2.37
7	-4.2	1.54	1.66	2.37
8	-4.3	1.93	2.29	3.96
8	-4.4	1.93	2.29	3.96
8	-4.5	1.93	2.29	3.96
8	-4.6	1.93	2.29	3.96	Sofia:10,06,2003 г.
9	-4.7	2.32	2.91	5.56
8	-4.8	1.93	2.29	3.96	Measured by:
9	-4.9	2.32	2.91	5.56	eng.L.Lyubomirov
9	-5	2.32	2.91	5.56

Sheet 25: Sheet4

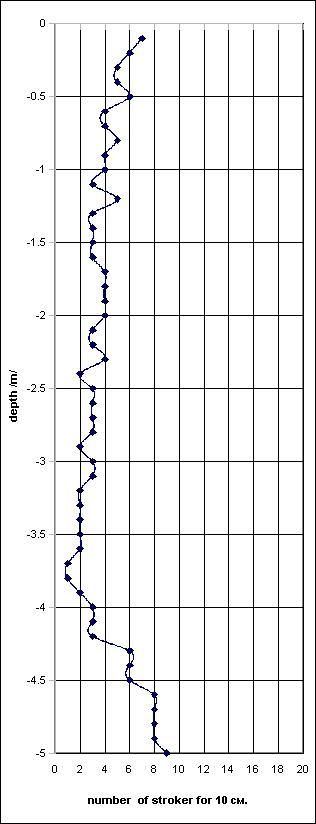

		Dynamic penetration No.22
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
7	-0.1	1.54	1.66	2.37
6	-0.2	1.15	1.04	0.77
5	-0.3	0.76	0.42	0.00
5	-0.4	0.76	0.42	0.00
6	-0.5	1.15	1.04	0.00
4	-0.6	0.37	0.00	0.00
4	-0.7	0.37	0.00	0.00
5	-0.8	0.76	0.00	0.00
4	-0.9	0.37	0.00	0.00
4	-1	0.37	0.00	0.00
3	-1.1	0.00	0.00	0.00
5	-1.2	0.76	0.00	0.00
3	-1.3	0.00	0.00	0.00
3	-1.4	0.00	0.00	0.00
3	-1.5	0.00	0.00	0.00
3	-1.6	0.00	0.00	0.00
4	-1.7	0.37	0.00	0.00
4	-1.8	0.37	0.00	0.00
4	-1.9	0.37	0.00	0.00
4	-2	0.37	0.00	0.00
3	-2.1	0.00	0.00	0.00
3	-2.2	0.00	0.00	0.00
4	-2.3	0.37	0.00	0.00
2	-2.4	0.00	0.00	0.00
3	-2.5	0.00	0.00	0.00
3	-2.6	0.00	0.00	0.00
3	-2.7	0.00	0.00	0.00
3	-2.8	0.00	0.00	0.00
2	-2.9	0.00	0.00	0.00
3	-3	0.00	0.00	0.00
3	-3.1	0.00	0.00	0.00
2	-3.2	0.00	0.00	0.00
2	-3.3	0.00	0.00	0.00
2	-3.4	0.00	0.00	0.00
2	-3.5	0.00	0.00	0.00
2	-3.6	0.00	0.00	0.00
1	-3.7	0.00	0.00	0.00
1	-3.8	0.00	0.00	0.00
2	-3.9	0.00	0.00	0.00
3	-4	0.00	0.00	0.00
3	-4.1	0.00	0.00	0.00
3	-4.2	0.00	0.00	0.00
6	-4.3	1.15	1.04	0.77
6	-4.4	1.15	1.04	0.77
6	-4.5	1.15	1.04	0.77
8	-4.6	2.58	3.54	6.02	Sofia:10,06,2003 г.
8	-4.7	2.58	3.54	6.02
8	-4.8	2.58	3.54	6.02	Measured by:
8	-4.9	2.58	3.54	6.02	eng.L.Lyubomirov
9	-5	2.93	4.12	7.40

Sheet 26: Sheet10

		Dynamic penetration No.23
		Light type, weight 8 kg from 57.5 cm with a cone F 20 mm

		Site: "Wetland restoration of Bruchlen/Kalimok Marshes"
nb.of str.	depth	p.resistenc	def.mod.	total mod.
/ N10 /	/м/	/ Ckd /	/ М /	деф. /Ео/
		мРа	мРа	мРа
3	-0.1	0.00	0.00	0.00
2	-0.2	0.00	0.00	0.00
2	-0.3	0.00	0.00	0.00
2	-0.4	0.00	0.00	0.00
2	-0.5	0.00	0.00	0.00
2	-0.6	0.00	0.00	0.00
1	-0.7	0.00	0.00	0.00
2	-0.8	0.00	0.00	0.00
1	-0.9	0.00	0.00	0.00
2	-1	0.00	0.00	0.00
1	-1.1	0.00	0.00	0.00
2	-1.2	0.00	0.00	0.00
1	-1.3	0.00	0.00	0.00
1	-1.4	0.00	0.00	0.00
1	-1.5	0.00	0.00	0.00
1	-1.6	0.00	0.00	0.00
2	-1.7	0.00	0.00	0.00
1	-1.8	0.00	0.00	0.00
1	-1.9	0.00	0.00	0.00
1	-2	0.00	0.00	0.00
1	-2.1	0.00	0.00	0.00
1	-2.2	0.00	0.00	0.00
1	-2.3	0.00	0.00	0.00
1	-2.4	0.00	0.00	0.00
1	-2.5	0.00	0.00	0.00
2	-2.6	0.00	0.00	0.00
1	-2.7	0.00	0.00	0.00
1	-2.8	0.00	0.00	0.00
1	-2.9	0.00	0.00	0.00
1	-3	0.00	0.00	0.00
2	-3.1	0.00	0.00	0.00
3	-3.2	0.00	0.00	0.00
3	-3.3	0.00	0.00	0.00
3	-3.4	0.00	0.00	0.00
5	-3.5	0.76	0.42	0.00
6	-3.6	1.15	1.04	0.77
6	-3.7	1.15	1.04	0.77
7	-3.8	1.54	1.66	2.37
8	-3.9	1.93	2.29	3.96
8	-4	1.93	2.29	3.96
9	-4.1	2.93	4.12	7.40
10	-4.2	3.28	4.70	8.78
11	-4.3	3.63	5.28	10.15
11	-4.4	3.63	5.28	10.15
12	-4.5	3.98	5.86	11.53
12	-4.6	3.98	5.86	11.53	Sofia:10,06,2003 г.
12	-4.7	3.98	5.86	11.53
13	-4.8	4.32	6.44	12.91	Measured by:
13	-4.9	4.32	6.44	12.91	eng.L.Lyubomirov
13	-5	4.32	6.44	12.91
